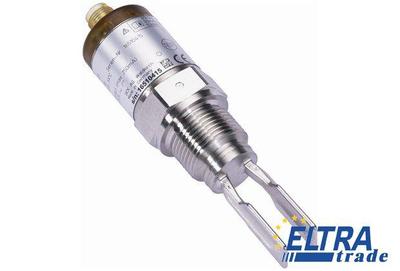

Sick LFV200-XATNACPVL Level sensors

Sick LFV200-XATNACPVL
Item Number: LFV200-XATNACPVL
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFV200-XATNACPVL is outdated.

Specification:

Part Number6037304
WHG approval:+
Response time:500 ms
Repeatability:≤ 1 mm
Silicon free:-
Process temperature:-40 °C ... +150 °C
Capacitive load:100 nF
Viscosity:0.1 mPas ... 10,000 mPas
Medium:Fluids
Power consumption:≤ 4.2 mA
Enclosure rating:IP 65
Ambient storage temperature:-40 °C ... +80 °C
Hysteresis:2 mm
Resolution:≤ 1 mm
Connection type:Valve plug DIN 43650
Housing material:Stainless steel 1.4404, PEI
Process pressure:-1 bar ... 64 bar
Fill material density:≥ 0.7 g/cm
Inductive load:≤ 1 H
Authorizations:WHG approval
VDE protection class 1:+
Temperature drift:0,03 mm/K
Initialization time:< 3 s
Accuracy of sensor element:± 2 mm
Wetted parts:316L (optional Ra < 0.8 µm)
Process connection:1" NPT PN 64
Measurement:Switch
Probe length:115 mm
Supply voltage:20 V AC/DC ... 253 V AC/DC
Ambient operating temperature:-40 °C ... +70 °C
Output current:< 250 mA
