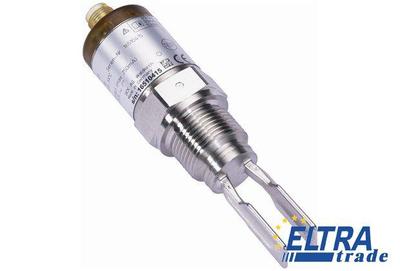

Sick LFV200-XXHRLCPV Level sensors

Sick LFV200-XXHRLCPV
Item Number: LFV200-XXHRLCPV
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
416.54
Quantity
-
+
Total price: 416.54
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6036545
Silicon free:-
Process temperature:-40 °C ... +150 °C
Wetted parts:316L (optional Ra < 0.8 µm)
Process connection:Conical coupling DN 25 acc. to DIN 11851 withunion nut (PN 40, 316L, Ra < 0.8µm)
Capacitive load:100 nF
Output current:< 250 mA
Enclosure rating:IP 65
Power consumption:≤ 4.2 mA
Probe length:38 mm
Hysteresis:2 mm
Repeatability:≤ 1 mm
Response time:500 ms
Fill material density:≥ 0.7 g/cm
EHEDG approval:+
Measurement:Switch
Process pressure:-1 bar ... 64 bar
Medium:Fluids
Accuracy of sensor element:± 2 mm
Supply voltage:20 V AC/DC ... 253 V AC/DC
Housing material:Stainless steel 1.4404, PEI
Connection type:Valve plug DIN 43650
Initialization time:< 3 s
Inductive load:≤ 1 H
Viscosity:0.1 mPas ... 10,000 mPas
Resolution:≤ 1 mm
Ambient operating temperature:-40 °C ... +70 °C
Temperature drift:0,03 mm/K
Ambient storage temperature:-40 °C ... +80 °C
VDE protection class 1:+
