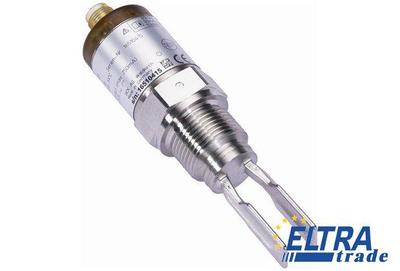

Sick LFV200-XXHRLTPM Level sensors

Sick LFV200-XXHRLTPM
Item Number: LFV200-XXHRLTPM
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
411.40
Quantity
-
+
Total price: 411.40
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6036535
Capacitive load:100 nF
Viscosity:0.1 mPas ... 10,000 mPas
Connection type:Round connector M12 x 1, 4-pin
Enclosure rating:IP 67
Inductive load:≤ 1 H
Output current:< 250 mA
Ambient operating temperature:-40 °C ... +70 °C
Repeatability:≤ 1 mm
Process temperature:-40 °C ... +150 °C
Resolution:≤ 1 mm
VDE protection class 2:+
Response time:500 ms
Supply voltage:10 V DC ... 55 V DC
Temperature drift:0,03 mm/K
Probe length:38 mm
Hysteresis:2 mm
Ambient storage temperature:-40 °C ... +80 °C
Initialization time:< 2 s
Accuracy of sensor element:± 2 mm
Power consumption:< 10 mA
Wetted parts:316L (optional Ra < 0.8 µm)
Housing material:Stainless steel 1.4404, PEI
Fill material density:≥ 0.7 g/cm
Medium:Fluids
Process connection:Conical coupling DN 25 acc. to DIN 11851 withunion nut (PN 40, 316L, Ra < 0.8µm)
EHEDG approval:+
Measurement:Switch
Process pressure:-1 bar ... 64 bar
Signal voltage HIGH:Vs - < 3 V
Ripple:≤ 5 Vpp
Signal voltage LOW:0 V +- 1 V
Silicon free:-
