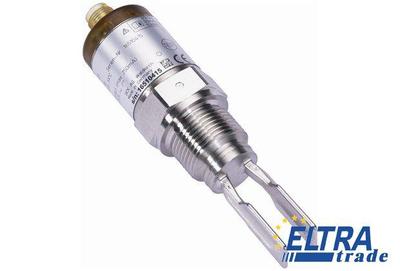

Sick LFV200-XXSGBCPV Level sensors

Sick LFV200-XXSGBCPV
Item Number: LFV200-XXSGBCPV
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
226.27
Quantity
-
+
Total price: 226.27
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6036367
Initialization time:< 3 s
Response time:500 ms
VDE protection class 1:+
Ambient storage temperature:-40 °C ... +80 °C
Silicon free:-
Probe length:38 mm
Fill material density:≥ 0.7 g/cm
Medium:Fluids
Wetted parts:316L (optional Ra < 0.8 µm)
Viscosity:0.1 mPas ... 10,000 mPas
Enclosure rating:IP 65
Process temperature:-40 °C ... +100 °C
Capacitive load:100 nF
Output current:< 250 mA
Process connection:G ¾ A PN 64
Repeatability:≤ 1 mm
Hysteresis:2 mm
Housing material:Stainless steel 1.4404, PEI
Process pressure:-1 bar ... 64 bar
Accuracy of sensor element:± 2 mm
Inductive load:≤ 1 H
Temperature drift:0,03 mm/K
Supply voltage:20 V AC/DC ... 253 V AC/DC
Connection type:Valve plug DIN 43650
Power consumption:≤ 4.2 mA
Measurement:Switch
Resolution:≤ 1 mm
Ambient operating temperature:-40 °C ... +70 °C
