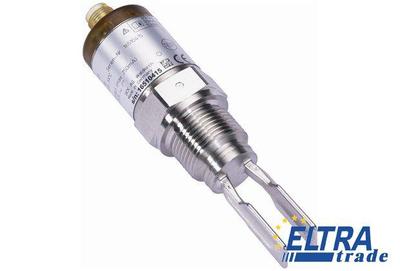

Sick LFV200-XXSNATPML Level sensors

Sick LFV200-XXSNATPML
Item Number: LFV200-XXSNATPML
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
267.41
Quantity
-
+
Total price: 267.41
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFV200-XXSNATPML is outdated.

Specification:

Part Number6037294
Wetted parts:316L (optional Ra < 0.8 µm)
Process pressure:-1 bar ... 64 bar
Response time:500 ms
Inductive load:≤ 1 H
Initialization time:< 2 s
Signal voltage LOW:0 V +- 1 V
Process temperature:-40 °C ... +100 °C
Measurement:Switch
Capacitive load:100 nF
Supply voltage:10 V DC ... 55 V DC
VDE protection class 2:+
Ambient storage temperature:-40 °C ... +80 °C
Signal voltage HIGH:Vs - < 3 V
Hysteresis:2 mm
Probe length:115 mm
Medium:Fluids
Temperature drift:0,03 mm/K
Enclosure rating:IP 67
Process connection:1" NPT PN 64
Output current:< 250 mA
Repeatability:≤ 1 mm
Housing material:Stainless steel 1.4404, PEI
Accuracy of sensor element:± 2 mm
Resolution:≤ 1 mm
Silicon free:-
Ambient operating temperature:-40 °C ... +70 °C
Fill material density:≥ 0.7 g/cm
Connection type:Round connector M12 x 1, 4-pin
Ripple:≤ 5 Vpp
Power consumption:< 10 mA
Viscosity:0.1 mPas ... 10,000 mPas
