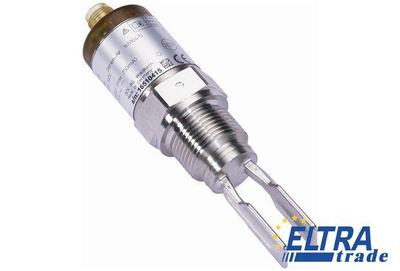

Sick LFV200-XXSNBCPV Level sensors

Sick LFV200-XXSNBCPV
Item Number: LFV200-XXSNBCPV
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFV200-XXSNBCPV is outdated.

Specification:

Part Number6036368
Process connection:¾" NPT PN 64
Connection type:Valve plug DIN 43650
Initialization time:< 3 s
Hysteresis:2 mm
Enclosure rating:IP 65
Ambient operating temperature:-40 °C ... +70 °C
Capacitive load:100 nF
Probe length:38 mm
Process temperature:-40 °C ... +100 °C
Wetted parts:316L (optional Ra < 0.8 µm)
Temperature drift:0,03 mm/K
Power consumption:≤ 4.2 mA
Accuracy of sensor element:± 2 mm
Output current:< 250 mA
Ambient storage temperature:-40 °C ... +80 °C
Housing material:Stainless steel 1.4404, PEI
Supply voltage:20 V AC/DC ... 253 V AC/DC
Response time:500 ms
Repeatability:≤ 1 mm
Silicon free:-
Process pressure:-1 bar ... 64 bar
Fill material density:≥ 0.7 g/cm
Measurement:Switch
Medium:Fluids
VDE protection class 1:+
Viscosity:0.1 mPas ... 10,000 mPas
Resolution:≤ 1 mm
Inductive load:≤ 1 H
