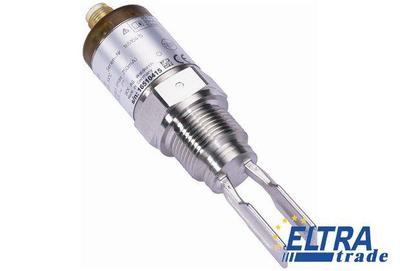

Sick LFV200-XXSNBTPM Level sensors

Sick LFV200-XXSNBTPM
Item Number: LFV200-XXSNBTPM
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFV200-XXSNBTPM is outdated.

Specification:

Part Number6036352
Capacitive load:100 nF
Fill material density:≥ 0.7 g/cm
Output current:< 250 mA
Supply voltage:10 V DC ... 55 V DC
Resolution:≤ 1 mm
Response time:500 ms
Viscosity:0.1 mPas ... 10,000 mPas
Hysteresis:2 mm
Enclosure rating:IP 67
Connection type:Round connector M12 x 1, 4-pin
Ambient storage temperature:-40 °C ... +80 °C
Repeatability:≤ 1 mm
Housing material:Stainless steel 1.4404, PEI
Process connection:¾" NPT PN 64
Initialization time:< 2 s
Signal voltage HIGH:Vs - < 3 V
Power consumption:< 10 mA
Measurement:Switch
Accuracy of sensor element:± 2 mm
VDE protection class 2:+
Probe length:38 mm
Ambient operating temperature:-40 °C ... +70 °C
Medium:Fluids
Inductive load:≤ 1 H
Ripple:≤ 5 Vpp
Process pressure:-1 bar ... 64 bar
Wetted parts:316L (optional Ra < 0.8 µm)
Signal voltage LOW:0 V +- 1 V
Temperature drift:0,03 mm/K
Silicon free:-
Process temperature:-40 °C ... +100 °C
