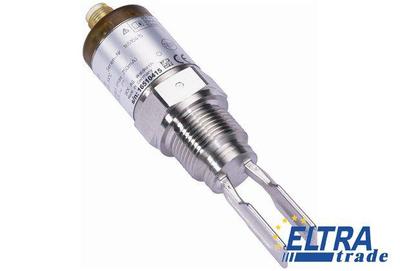

Sick LFV200-XXTGBCPV Level sensors

Sick LFV200-XXTGBCPV
Item Number: LFV200-XXTGBCPV
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
244.78
Quantity
-
+
Total price: 244.78
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6036371
Fill material density:≥ 0.7 g/cm
Power consumption:≤ 4.2 mA
Medium:Fluids
Supply voltage:20 V AC/DC ... 253 V AC/DC
Capacitive load:100 nF
Process connection:G ¾ A PN 64
Viscosity:0.1 mPas ... 10,000 mPas
Housing material:Stainless steel 1.4404, PEI
Inductive load:≤ 1 H
Accuracy of sensor element:± 2 mm
Connection type:Valve plug DIN 43650
Ambient operating temperature:-40 °C ... +70 °C
Probe length:38 mm
Temperature drift:0,03 mm/K
Ambient storage temperature:-40 °C ... +80 °C
Process temperature:-40 °C ... +150 °C
Response time:500 ms
Silicon free:-
Output current:< 250 mA
Process pressure:-1 bar ... 64 bar
Measurement:Switch
Initialization time:< 3 s
Enclosure rating:IP 65
VDE protection class 1:+
Repeatability:≤ 1 mm
Hysteresis:2 mm
Resolution:≤ 1 mm
Wetted parts:316L (optional Ra < 0.8 µm)
