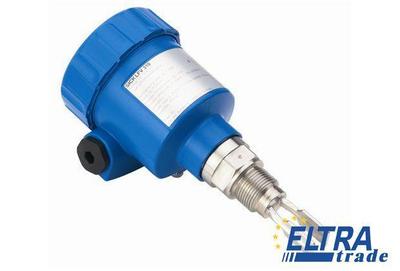

Sick LFV310-XXGBVTMRX Level sensors

Sick LFV310-XXGBVTMRX
Item Number: LFV310-XXGBVTMRX
  • Several housing materials and electrical outputs available
  • Commissioning without filling
  • Process temperature up to 250 °C
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFV310-XXGBVTMRX is outdated.

Specification:

Part Number6038000
Probe length:66 mm
Repeatability:1
Capacitive load:750 VA 54 W
Power consumption:5 mA ... 30 mA
Wetted parts:Stainless steel 316L (optional Ra ≤ 0.8 µm)
Inductive load:750 VA 54 W
Housing material:Aluminum
Hysteresis:2 mm
Ambient storage temperature:-40 °C ... 80 °C
Fill material density:0.5 ... 2.5
Response time:500 ms
Process connection:G ¾ A PN 64 / 316L
Connection type:M20 x 1.5
Viscosity:0.1 mPas ... 10,000 mPas
Process pressure:-1 bar ... 64 bar
Measurement:Switch
Temperature drift:0,03 mm/K
Initialization time:2
Medium:Fluids
Sensor material:Stainless steel 1.4404
Ambient operating temperature:-40 °C ... 70 °C
Process temperature:-50 °C ... 250 °C
Accuracy of sensor element:± 2 mm
Enclosure rating:IP 66
Protection class:0, 1
Output current:> 10 UA, 3A AC, 1A DC
Output signal:Double relay (DPDT): 20 V DC ... 72 V DC / 20 ... 253 V AC
