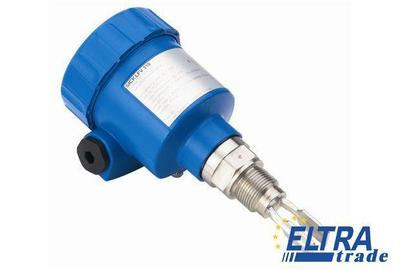

Sick LFV310-XXGBVX8TX Level sensors

Sick LFV310-XXGBVX8TX
Item Number: LFV310-XXGBVX8TX
  • Several housing materials and electrical outputs available
  • Commissioning without filling
  • Process temperature up to 250 °C
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFV310-XXGBVX8TX is outdated.

Specification:

Part Number6037752
Medium:Fluids
Ripple:≤ 5 Vpp
Probe length:66 mm
Wetted parts:Stainless steel 316L (optional Ra ≤ 0.8 µm)
Sensor material:Stainless steel 1.4404
Fill material density:0.5 ... 2.5
Signal voltage HIGH:Uv - 3 V
Inductive load:1 H
Repeatability:1
Process temperature:-50 °C ... 150 °C
Temperature drift:0,03 mm/K
Power consumption:< 10 mA
Measurement:Switch
Response time:500 ms
Housing material:Stainless steel (electropolished) 316L
Output signal:Transistor output PNP/ NPN: 10 V DC ... 55 V DC
Enclosure rating:IP 66
Process connection:G ¾ A PN 64 / 316L
WHG approval:-
Hysteresis:2 mm
Ambient operating temperature:-40 °C ... 70 °C
Process pressure:-1 bar ... 64 bar
Initialization time:2
Output current:< 300 mA
Ambient storage temperature:-40 °C ... 80 °C
Capacitive load:100
Protection class:0, 1
Signal voltage LOW:< 1 V
Connection type:M20 x 1.5
Viscosity:0.1 mPas ... 10,000 mPas
Accuracy of sensor element:± 2 mm
