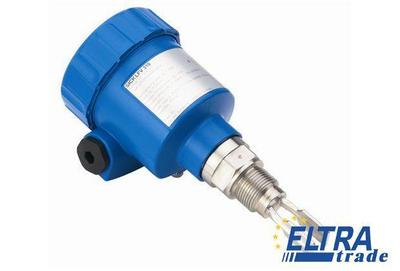

Sick LFV310-XXGBVXMRX Level sensors

Sick LFV310-XXGBVXMRX
Item Number: LFV310-XXGBVXMRX
  • Several housing materials and electrical outputs available
  • Commissioning without filling
  • Process temperature up to 250 °C
568.43
Quantity
-
+
Total price: 568.43
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6037991
Fill material density:0.5 ... 2.5
Ambient storage temperature:-40 °C ... 80 °C
Capacitive load:750 VA 54 W
Output signal:Double relay (DPDT): 20 V DC ... 72 V DC / 20 ... 253 V AC
Sensor material:Stainless steel 1.4404
Ambient operating temperature:-40 °C ... 70 °C
Probe length:66 mm
Hysteresis:2 mm
Ship approval:-
Repeatability:1
Initialization time:2
Inductive load:750 VA 54 W
Connection type:M20 x 1.5
Viscosity:0.1 mPas ... 10,000 mPas
Measurement:Switch
Medium:Fluids
Wetted parts:Stainless steel 316L (optional Ra ≤ 0.8 µm)
Protection class:0, 1
ATEX certification:-
Output current:> 10 UA, 3A AC, 1A DC
Accuracy of sensor element:± 2 mm
Power consumption:5 mA ... 30 mA
Temperature drift:0,03 mm/K
Process pressure:-1 bar ... 64 bar
Enclosure rating:IP 66
Process temperature:-50 °C ... 150 °C
Process connection:G ¾ A PN 64 / 316L
Housing material:Aluminum
WHG approval:-
Response time:500 ms
