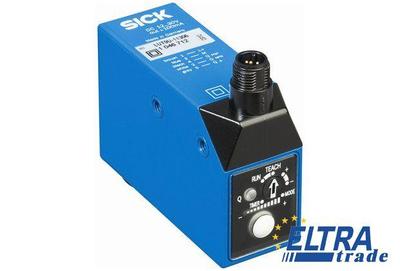

Sick LUT9U-P120L Luminescence sensors

Sick LUT9U-P120L
Item Number: LUT9U-P120L
  • Simple teach-in
  • Operating range up to 250 mm
  • Version with IO-Link for remote monitoring
1018.36
Quantity
-
+
Total price: 1018.36
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1046188
Shock load:According to IEC 60068
Connection type:Connector M12, 4-pin
Output current Imax.:100 mA
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
Supply voltage:10 V DC ... 30 V DC
Light source :LED
Operating range:10 mm 40 mm
Housing design (light emission):Rectangular
Sensing distance :20 mm
Time delay:0 ms / 10 ms / 20 ms, Adjustable
Enclosure rating:IP 67
Protection class :II
Type of light:Ultraviolet light
IO-Link functions:Standard functions
Fieldbus interface:IO-Link
Switching output:PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Housing material:Metal, Zinc diecast
Receiving range:450 nm ... 750 nm
Adjustment:IO-Link (optional)
Ambient storage temperature:-25 °C ... +75 °C
Output function :Light switching
Analog output QA:0 mA ... 13 mA
Receiving filters:KV 418 (standard)
Ripple :< 5 Vpp
Power consumption :< 100 mA
Wave length:375 nm
Light spot direction:Vertical
Light emission:Long side
Ambient operating temperature:-10 °C ... +55 °C
Weight:400 g
Light spot size:3 mm x 9 mm
Switching mode:PNP
Switching frequency :0.5 kHz, 2.5 kHz, 6.5 kHz, Adjustable
Response time :1 ms
200 µs
75 µs
