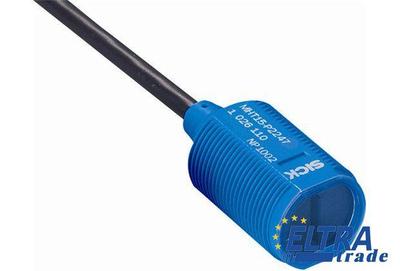

Sick MHTB15-P2267 Photoelectric sensors MH15V

Sick MHTB15-P2267
Item Number: MHTB15-P2267
  • Long sensing distance up to 300 mm
  • Shortest M18 sensor housing on the market
  • Superior background suppression technology based on OES3 ASIC technology, with second LED emitter
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick MHTB15-P2267 is outdated.


Part Number1047157
Sensing range:3 mm ... 300 mm
Type of light:Visible red light
Switching output:PNP
UL File No.:NRKH.E189383 & NRKH7.E189383
Ambient operating temperature:-25 ... 55 °C
Thread diameter (housing):M18 x 1
Light source:PinPoint LED
Wave length:650 nm
Sensing range max.:3 mm ... 300 mm
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Housing length:35.8 mm
Weight:90 g
Conductor cross-section:0.14 mm²
Connection type:Cable, 3-wire, 2 m
Switching mode:Dark switching
Supply voltage:10 V DC ... 30
Light spot size (distance):Ø 7 mm (100 mm)
Housing material:ABS, Plastic
Cable diameter:3.7 mm
Optical axis:Axial
Power consumption:30
Adjustment:Potentiometer, 270 °
Enclosure rating:IP 67
IP 69K
Housing design (light emission):Cylindrical, straight
Output current Imax.:100
Optics material:PMMA
Signal voltage PNP HIGH / LOW:Uv - (< 2,9 V) / ca. 0 V
Cable material:PVC
Circuit protection:A, C, D
Switching frequency:700
Response time:≤ 0.72 ms
Ripple:≤ 5 Vpp
Protection class:III
Ambient storage temperature:-25 ... 70 °C
