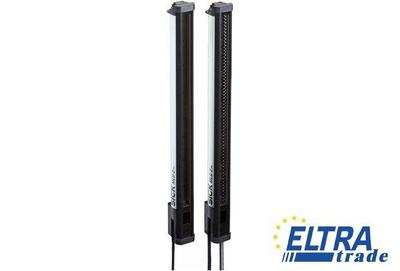

Sick MLG05A-1495I10501 Measuring automation light grids

Sick MLG05A-1495I10501
Item Number: MLG05A-1495I10501
  • High-resolution light grid: Available with beam separation of 2.5 mm (coming soon), 5 mm, 10 mm, 25 mm, and 50 mm
  • "High-speed scan" function with triple scanning speed
  • "Transparent mode" function for detecting transparent materials
6041.58
Quantity
-
+
Total price: 6041.58
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick MLG05A-1495I10501 is outdated.

Specification:

Part Number1214293
Beam separation:5 mm
Ambient light safety:Direct: 12,500 ... 150,000 lx, Indirect: ≥50,000 lx
Connection type:Male connector M12, 8-pin
Number of beams:300
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Ripple:< 5 Vpp
Enclosure rating:IP 65, IP 67
Output load capacitive:100 nF
Housing material:Aluminum
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Initialization time:< 1 s
Maximum range :7 m
Detection height:1,495 mm
Output load inductive:1 H
Option:Nonexistent
Version:Pro
Wave length:850 nm
EMC:EN 60947-5-2
Software features:Baud rate RS-485: 9,600, Interface RS-485: beam status, Q1: presence detection, Teach-in, Standard mode
Working range:5 m
Supply voltage Vs :DC 18 V ... 30 V
Output current Imax.:100 mA
Dimensions (W x H x D):34 mm x 1,573.3 mm x 30.6 mm
Minimum range:≥0 mm
Front screen:PMMA
Data interface:RS-485 + 2 x I/O (IO-Link)
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Response time :24.4 ms
IO-Link:+
Power consumption receiver :180 mA
Indication:LED
Power consumption sender :70 mA
Technology:Sender/receiver
Weight:3.247 kg
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Minimum detectable object (MDO) :5 mm
9 mm
Protection class:III
