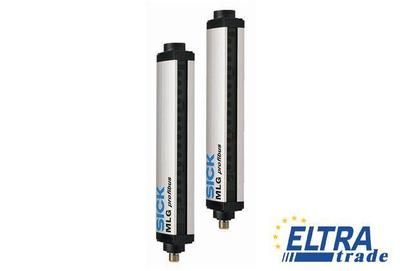

Sick MLG1-0890P821

Measuring automation light grids
Sick MLG1-0890P821
Price on Request
One click request

Specification:

Part Number1059309
Technology:Sender/receiver
Synchronization:Cable
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Wave length:IR 880 nm
Minimum range:Parallel beam: ≥0 mm
Housing material:Aluminum
Ripple:< 5 Vpp
Power consumption sender :320 mA
Maximum range :12 m
Weight:2.547 kg
Configuration:GSD data file
Connection type:Male connector M12, 8-pin
Output load inductive:1 H
Dimensions (W x H x D):34 mm x 964 mm x 29 mm
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Supply voltage Vs:DC 18 V ... 30 V
Front screen:PMMA
EMC:EN 60947-5-2
Indication:7-segment display, LED
Task:Measurement light grid
Output current Imax.:100 mA
Detection height:890 mm
Minimum detectable object (MDO):Parallel beam: ≥20 mm
Switching output:1 x PNP
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Number of beams:90
Initialization time:1 s
Power consumption receiver :370 mA
Power consumption:320 mA
Response time :Parallel beam: ≥14.5 ms
Inputs:1 x PNP
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Protection class:III
Output load capacitive:100 nF
Beam separation:10 mm
Shock load:10 g / IEC 68-2-29 / 16 ms
Working range:8.5 m
Enclosure rating:IP 65
