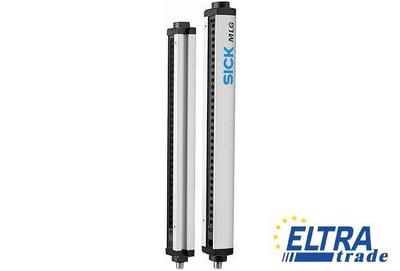

Sick MLG1-2240F511

Measuring automation light grids
Sick MLG1-2240F511
Price on Request
One click request

Specification:

Part Number1059678
Task:Measurement light grid
Wave length:IR 880 nm
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Synchronization:Cable
Initialization time:1 s
Power consumption receiver :775 mA
Minimum range:Parallel beam: ≥0 mm
Configuration:Standard (switching)
EMC:EN 60947-5-2
Beam separation:10 mm
Output load capacitive:100 nF
Shock load:10 g / IEC 68-2-29 / 16 ms
Output current Imax.:100 mA
Switching output:1 x PNP
Minimum detectable object (MDO):Parallel beam: ≥15 mm
Indication:7-segment display, LED
Enclosure rating:IP 65
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Response time :Parallel beam: ≥34.75 ms
Working range:5 m
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Protection class:III
Supply voltage Vs:DC 18 V ... 30 V
Weight:5.652 kg
Power consumption sender :590 mA
Dimensions (W x H x D):34 mm x 2,314 mm x 29 mm
Output load inductive:1 H
Maximum range :7 m
Front screen:PMMA
Power consumption:590 mA
Housing material:Aluminum
Technology:Sender/receiver
Number of beams:225
Ripple:< 5 Vpp
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Connection type:Male connector M12, 5-pin
Detection height:2,240 mm
