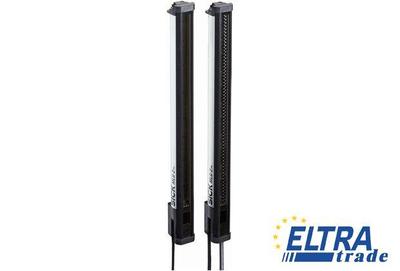

Sick MLG10A-0590B10802

Measuring automation light grids
Sick MLG10A-0590B10802
Price on Request
One click request

Specification:

Part Number1213784
Minimum detectable object (MDO) :10 mm
14 mm
Supply voltage Vs :DC 18 V ... 30 V
Minimum range:≥0 mm
Software features:Q1: presence detection, Presence detection inverted, Number of broken beams, Height measurement (last beam)/LBB, Standard mode
Power consumption sender :58 mA
Ripple:< 5 Vpp
Technology:Sender/receiver
IO-Link:+
Detection height:590 mm
Initialization time:< 1 s
Version:Pro
Working range:8.5 m
Ambient light safety:Direct: 12,500 ... 150,000 lx, Indirect: ≥50,000 lx
Wave length:850 nm
Output current Imax.:100 mA
Output load inductive:1 H
Power consumption receiver :132 mA
Option:Nonexistent
Weight:1.447 kg
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Front screen:PMMA
Enclosure rating:IP 65, IP 67
Protection class:III
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Connection type:Male connector M12, 8-pin
Dimensions (W x H x D):34 mm x 673.3 mm x 30.6 mm
EMC:EN 60947-5-2
Housing material:Aluminum
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Data interface:2 x Analog + 2 x I/O (IO-Link)
Number of beams:60
Response time :5.9 ms
Output load capacitive:100 nF
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Beam separation:10 mm
Indication:LED
Maximum range :11.2 m
