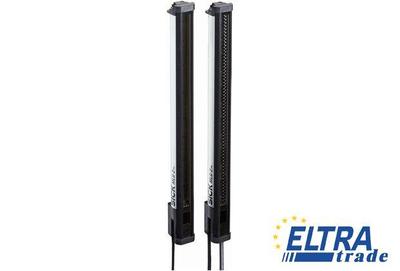

Sick MLG10A-2690B10501 Measuring automation light grids
Item Number: MLG10A-2690B10501
- High-resolution light grid: Available with beam separation of 2.5 mm (coming soon), 5 mm, 10 mm, 25 mm, and 50 mm
- "High-speed scan" function with triple scanning speed
- "Transparent mode" function for detecting transparent materials
- Overview
- Datasheet
- Alternative numbers
- Comments
Sick MLG10A-2690B10501 is outdated.
Specification:
| Part Number | 1214369 |
| Detection height: | 2,690 mm |
| Beam separation: | 10 mm |
| Initialization time: | < 1 s |
| Output load capacitive: | 100 nF |
| Ambient light safety: | Direct: 12,500 ... 150,000 lx, Indirect: ≥50,000 lx |
| Front screen: | PMMA |
| Version: | Pro |
| Ripple: | < 5 Vpp |
| Enclosure rating: | IP 65, IP 67 |
| Indication: | LED |
| Weight: | 5.647 kg |
| Data interface: | 2 x Analog + 2 x I/O (IO-Link) |
| Number of beams: | 270 |
| Shock load: | 15 g / DIN EN 60 068-2-27 / 16 ms |
| EMC: | EN 60947-5-2 |
| Protection class: | III |
| Housing material: | Aluminum |
| Supply voltage Vs : | DC 18 V ... 30 V |
| Dimensions (W x H x D): | 34 mm x 2,773.3 mm x 30.6 mm |
| Power consumption receiver : | 174 mA |
| Working range: | 5 m |
| Minimum detectable object (MDO) : | 10 mm 14 mm |
| Output load inductive: | 1 H |
| Connection type: | Male connector M12, 8-pin |
| Software features: | Q1: presence detection, Teach-in, Number of broken beams, Height measurement (last beam)/LBB, Standard mode |
| Vibration resistance: | 5 g, 10 Hz ... 55 Hz (EN 60 068-2-64) |
| Technology: | Sender/receiver |
| Wave length: | 850 nm |
| Maximum range : | 7 m |
| IO-Link: | + |
| Option: | Nonexistent |
| Ambient temperature: | Operation: -30 ... +55 °C, Storage: -40 ... +70 °C |
| Minimum range: | ≥0 mm |
| Output current Imax.: | 100 mA |
| Circuit protection: | Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected |
| Response time : | 22.1 ms |
| Power consumption sender : | 68.5 mA |
