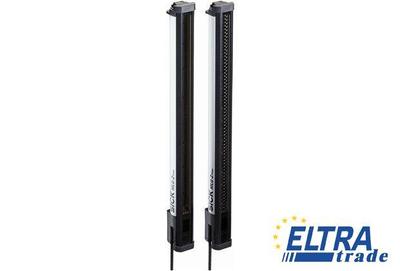

Sick MLG10S-0290A10501 Measuring automation light grids

Sick MLG10S-0290A10501
Item Number: MLG10S-0290A10501
  • High-resolution light grid: Available with beam separation of 5 mm, 10 mm, 25 mm, and 50 mm
  • Available with three push-pull switching outputs or two analog outputs
  • Display configuration with selected, pre-programmed measuring functions
Total price: 1230.70
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1213541
Supply voltage Vs :DC 18 V ... 30 V
Front screen:PMMA
Output current Imax.:100 mA
EMC:EN 60947-5-2
Number of beams:30
Ripple:< 5 Vpp
Output load capacitive:100 nF
Working range:5 m
Data interface:2 x Analog + 1 x Q (IO-Link)
Initialization time:< 1 s
Software features:Inverted: -, Q1: presence detection, Height measurement (first beam)/FBB, Height measurement (last beam)/LBB, Standard teach
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Protection class:III
Response time :6.1 ms
Maximum range :7 m
Weight:0.847 kg
Minimum range:≥0 mm
Housing material:Aluminum
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Wave length:850 nm
Enclosure rating:IP 65, IP 67
Power consumption sender :56.5 mA
Detection height:290 mm
Ambient light safety:Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Minimum detectable object (MDO) :14 mm
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Dimensions (W x H x D):34 mm x 373.3 mm x 30.6 mm
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Power consumption receiver :126 mA
Connection type:Male connector M12, 5-pin
Beam separation:10 mm
Output load inductive:1 H
