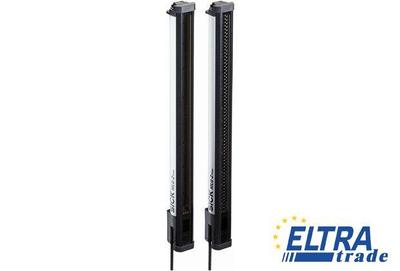

Sick MLG10S-0740D10501

Measuring automation light grids
Sick MLG10S-0740D10501
Price on Request
One click request

Specification:

Part Number1213539
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
IO-Link:+
Beam separation:10 mm
Data interface:3 x Q (IO-Link)
Working range:5 m
Weight:1.747 kg
Version:Prime
Initialization time:< 1 s
Dimensions (W x H x D):34 mm x 823.3 mm x 30.6 mm
Option:Nonexistent
Software features:Inverted: -, Q1: Auto-define height classification, Auto-define height classification, Auto-define height classification, Standard teach
Number of beams:75
Front screen:PMMA
Ambient light safety:Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Enclosure rating:IP 65, IP 67
Housing material:Aluminum
Minimum detectable object (MDO) :14 mm
Protection class:III
Indication:LED
Technology:Sender/receiver
Power consumption receiver :135 mA
Power consumption sender :58.75 mA
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Wave length:850 nm
Connection type:Male connector M12, 5-pin
Maximum range :7 m
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Supply voltage Vs :DC 18 V ... 30 V
Output current Imax.:100 mA
Ripple:< 5 Vpp
Minimum range:≥0 mm
Output load capacitive:100 nF
Output load inductive:1 H
Response time :9.7 ms
Detection height:740 mm
EMC:EN 60947-5-2
