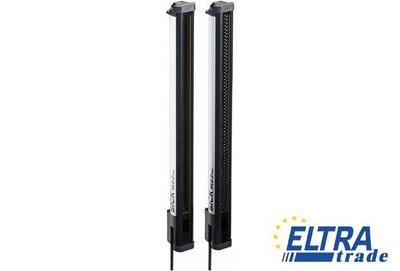

Sick MLG25S-0275D10501 Measuring automation light grids

Sick MLG25S-0275D10501
Item Number: MLG25S-0275D10501
  • High-resolution light grid: Available with beam separation of 5 mm, 10 mm, 25 mm, and 50 mm
  • Available with three push-pull switching outputs or two analog outputs
  • Display configuration with selected, pre-programmed measuring functions
Total price: 846.35
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1213513
Supply voltage Vs :DC 18 V ... 30 V
Detection height:275 mm
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
EMC:EN 60947-5-2
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Power consumption receiver :122.4 mA
Output current Imax.:100 mA
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Initialization time:< 1 s
Data interface:3 x Q (IO-Link)
Power consumption sender :55.6 mA
Minimum range:≥0 mm
Weight:0.847 kg
Working range:5 m
Software features:Inverted: -, Q1: Auto-define height classification, Auto-define height classification, Auto-define height classification, Standard teach
Enclosure rating:IP 65, IP 67
Housing material:Aluminum
Response time :6 ms
Output load capacitive:100 nF
Output load inductive:1 H
Connection type:Male connector M12, 5-pin
Protection class:III
Number of beams:12
Ripple:< 5 Vpp
Minimum detectable object (MDO) :29 mm
Maximum range :7 m
Front screen:PMMA
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Beam separation:25 mm
Wave length:850 nm
Ambient light safety:Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Dimensions (W x H x D):34 mm x 373.3 mm x 30.6 mm
