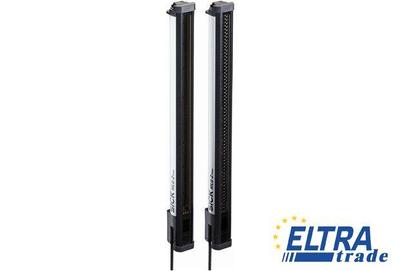

Sick MLG25S-1775A10501 Measuring automation light grids

Sick MLG25S-1775A10501
Item Number: MLG25S-1775A10501
  • High-resolution light grid: Available with beam separation of 5 mm, 10 mm, 25 mm, and 50 mm
  • Available with three push-pull switching outputs or two analog outputs
  • Display configuration with selected, pre-programmed measuring functions
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick MLG25S-1775A10501 is outdated.

Specification:

Part Number1214441
Output load capacitive:100 nF
Data interface:2 x Analog + 1 x Q (IO-Link)
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Front screen:PMMA
Dimensions (W x H x D):34 mm x 1,873.3 mm x 30.6 mm
Technology:Sender/receiver
Indication:LED
Enclosure rating:IP 65, IP 67
IO-Link:+
Connection type:Male connector M12, 5-pin
Ambient light safety:Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Output current Imax.:100 mA
Housing material:Aluminum
Maximum range :7 m
Detection height:1,775 mm
Version:Prime
Power consumption sender :58.6 mA
Weight:3.847 kg
Ripple:< 5 Vpp
Output load inductive:1 H
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Minimum range:≥0 mm
Working range:5 m
Minimum detectable object (MDO) :29 mm
Initialization time:< 1 s
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Supply voltage Vs :DC 18 V ... 30 V
Power consumption receiver :134.4 mA
Beam separation:25 mm
EMC:EN 60947-5-2
Software features:Inverted: -, Q1: presence detection, Height measurement (first beam)/FBB, Height measurement (last beam)/LBB, Standard teach
Option:Nonexistent
Response time :9.4 ms
Number of beams:72
Protection class:III
Wave length:850 nm
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
