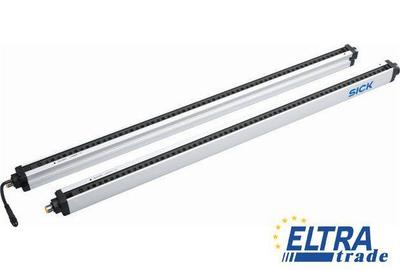

Sick MLG3-1470F812 Measuring automation light grids

Sick MLG3-1470F812
Item Number: MLG3-1470F812
  • Resolutions of 10 / 20 / 30 / 50 mm and customer-specific resolutions
  • Working range up to 8.5 m
  • Detection heights of over 3 m and up to 240 beams possible
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1023556
Supply voltage Vs :DC 18 V ... 30 V
Initialization time:1 s
Minimum detectable object (MDO) :Parallel beam: ≥35 mm
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Output load inductive:1 H
Inputs:1 x PNP
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Housing material:Aluminum
Weight:3.881 kg
Output load capacitive:100 nF
Task:Measurement light grid
Configuration:Parameterization interface (measuring)
Maximum range :7 m
Output current Imax.:100 mA
EMC:EN 60947-5-2
Indication:7-segment display, LED
Power consumption:240 mA
Wave length:IR 880 nm
Ripple:< 5 Vpp
Front screen:PMMA
Power consumption receiver :250 mA
Switching output:3 x PNP
Working range :5 m
Dimensions (W x H x D):34 mm x 1,564 mm x 29 mm
Connection type:Male connector M12, 8-pin
Enclosure rating:IP 65
Power consumption sender :240 mA
Response time :Parallel beam: ≥8.5 ms
Detection height:1,470 mm
Beam separation:30 mm
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Protection class:III
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Shock load:10 g / IEC 68-2-29 / 16 ms
Minimum range:Parallel beam: ≥0 mm
Number of beams:50
