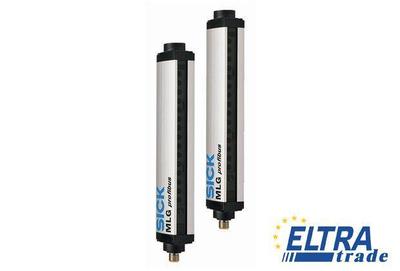

Sick MLG3-2070P811

Measuring automation light grids
Sick MLG3-2070P811
Price on Request
One click request

Specification:

Part Number1029168
Working range :5 m
Housing material:Aluminum
Power consumption sender :280 mA
Shock load:10 g / IEC 68-2-29 / 16 ms
Weight:5.261 kg
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Technology:Sender/receiver
Configuration:GSD data file
Beam separation:30 mm
Minimum range:Parallel beam: ≥0 mm
Supply voltage Vs :DC 18 V ... 30 V
EMC:EN 60947-5-2
Inputs:1 x PNP
Front screen:PMMA
Indication:7-segment display, LED
Dimensions (W x H x D):34 mm x 2,164 mm x 29 mm
Response time :Parallel beam: ≥11.5 ms
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Output load inductive:1 H
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Output load capacitive:100 nF
Number of beams:70
Synchronization:Cable
Enclosure rating:IP 65
Ripple:< 5 Vpp
Maximum range :7 m
Power consumption:280 mA
Protection class:III
Minimum detectable object (MDO) :Parallel beam: ≥35 mm
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Wave length:IR 880 nm
Output current Imax.:100 mA
Connection type:Male connector M12, 8-pin
Task:Measurement light grid
Detection height:2,070 mm
Power consumption receiver :310 mA
Switching output:1 x PNP
Initialization time:1 s
