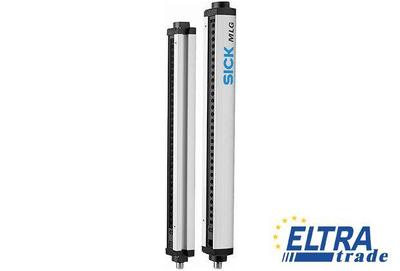

Sick MLG3-2220F511 Measuring automation light grids
Item Number: MLG3-2220F511
- Up to 3 x PNP or NPN switching outputs
- Resolutions of 10 / 20 / 30 / 50 mm and customer-specific resolutions
- Working range up to 8.5 m
- Overview
- Datasheet
- Alternative numbers
- Comments
Specification:
| Part Number | 1023561 |
| EMC: | EN 60947-5-2 |
| Wave length: | IR 880 nm |
| Circuit protection: | Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected |
| Minimum range: | Parallel beam: ≥0 mm |
| Beam separation: | 30 mm |
| Connection type: | Male connector M12, 5-pin |
| Ambient light safety : | Direct: ≥12,500 lx, Indirect: ≥50,000 lx |
| Shock load: | 10 g / IEC 68-2-29 / 16 ms |
| Power consumption: | 290 mA |
| Response time : | Parallel beam: ≥12.25 ms |
| Detection height: | 2,220 mm |
| Output current Imax.: | 100 mA |
| Output load inductive: | 1 H |
| Protection class: | III |
| Vibration resistance: | 5 g, 10 Hz ... 55 Hz (IEC 68-2-6) |
| Indication: | 7-segment display, LED |
| Weight: | 5.606 kg |
| Task: | Measurement light grid |
| Initialization time: | 1 s |
| Minimum detectable object (MDO) : | Parallel beam: ≥35 mm |
| Housing material: | Aluminum |
| Supply voltage Vs : | DC 18 V ... 30 V |
| Configuration: | Standard (switching) |
| Enclosure rating: | IP 65 |
| Ambient temperature: | Operation: -25 ... +55 °C, Storage: -40 ... +70 °C |
| Dimensions (W x H x D): | 34 mm x 2,314 mm x 29 mm |
| Synchronization: | Cable |
| Number of beams: | 75 |
| Power consumption sender : | 290 mA |
| Maximum range : | 7 m |
| Output load capacitive: | 100 nF |
| Ripple: | < 5 Vpp |
| Technology: | Sender/receiver |
| Front screen: | PMMA |
| Switching output: | 1 x PNP |
| Working range : | 5 m |
| Power consumption receiver : | 325 mA |
