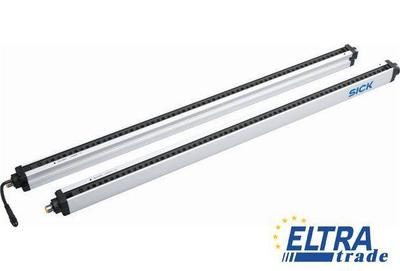

Sick MLG3-2220F812 Measuring automation light grids

Sick MLG3-2220F812
Item Number: MLG3-2220F812
  • Resolutions of 10 / 20 / 30 / 50 mm and customer-specific resolutions
  • Working range up to 8.5 m
  • Detection heights of over 3 m and up to 240 beams possible
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1022173
Working range :5 m
Configuration:Parameterization interface (measuring)
Power consumption sender :290 mA
Minimum detectable object (MDO) :Parallel beam: ≥35 mm
Initialization time:1 s
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Detection height:2,220 mm
Wave length:IR 880 nm
Weight:5.606 kg
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Dimensions (W x H x D):34 mm x 2,314 mm x 29 mm
Indication:7-segment display, LED
Connection type:Male connector M12, 8-pin
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Output load inductive:1 H
Beam separation:30 mm
Protection class:III
Enclosure rating:IP 65
Response time :Parallel beam: ≥12.25 ms
Minimum range:Parallel beam: ≥0 mm
Front screen:PMMA
Power consumption receiver :325 mA
Maximum range :7 m
Supply voltage Vs :DC 18 V ... 30 V
Shock load:10 g / IEC 68-2-29 / 16 ms
Output load capacitive:100 nF
Power consumption:290 mA
Task:Measurement light grid
Ripple:< 5 Vpp
Housing material:Aluminum
Inputs:1 x PNP
Output current Imax.:100 mA
Switching output:3 x PNP
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Number of beams:75
EMC:EN 60947-5-2
