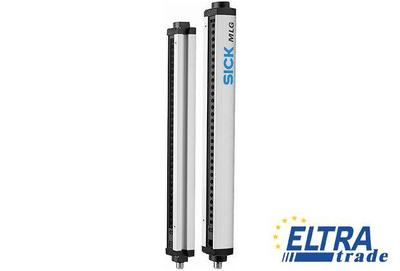

Sick MLG5-0250F51L

Measuring automation light grids
Sick MLG5-0250F51L
Price on Request
One click request

Specification:

Part Number1023622
Indication:7-segment display, LED
Enclosure rating:IP 65
Configuration:3-times cross beam and Q inv.
Connection type:Male connector M12, 5-pin
Minimum detectable object (MDO) :Multiple scan: ≥30 mm
Power consumption:152 mA
Housing material:Aluminum
Beam separation:50 mm
Maximum range :7 m
Task:Measurement light grid
Initialization time:1 s
Working range :5 m
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Technology:Sender/receiver
Wave length:IR 880 nm
Ripple:< 5 Vpp
Front screen:PMMA
Response time :Multiple scan: ≥5.7 ms
EMC:EN 60947-5-2
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Shock load:10 g / IEC 68-2-29 / 16 ms
Number of beams:6
Power consumption sender :152 mA
Weight:1.075 kg
Supply voltage Vs :DC 18 V ... 30 V
Minimum range:Multiple scan: ≥840 mm
Power consumption receiver :118 mA
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Switching output:1 x PNP
Dimensions (W x H x D):34 mm x 364 mm x 29 mm
Synchronization:Cable
Output current Imax.:100 mA
Output load capacitive:100 nF
Output load inductive:1 H
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Protection class:III
Detection height:250 mm
