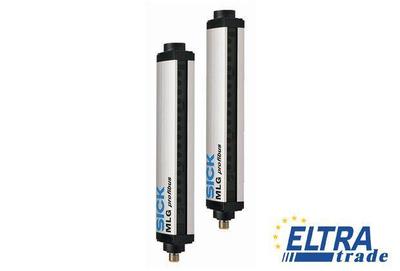

Sick MLG5-0400P811 Measuring automation light grids

Sick MLG5-0400P811
Item Number: MLG5-0400P811
  • Integrated PROFIBUS interface
  • Resolutions of 10 / 20 / 30 / 50 mm and customer-specific resolutions
  • Working range up to 8.5 m
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick MLG5-0400P811 is outdated.

Specification:

Part Number1029867
Dimensions (W x H x D):34 mm x 514 mm x 29 mm
Technology:Sender/receiver
Working range :5 m
Inputs:1 x PNP
Ripple:< 5 Vpp
Shock load:10 g / IEC 68-2-29 / 16 ms
Protection class:III
Task:Measurement light grid
Connection type:Male connector M12, 8-pin
Front screen:PMMA
Output load capacitive:100 nF
Configuration:GSD data file
Output current Imax.:100 mA
Housing material:Aluminum
Detection height:400 mm
Supply voltage Vs :DC 18 V ... 30 V
Synchronization:Cable
Number of beams:9
Switching output:1 x PNP
Power consumption receiver :127 mA
Wave length:IR 880 nm
Power consumption:158 mA
Indication:7-segment display, LED
Output load inductive:1 H
Enclosure rating:IP 65
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Weight:1.42 kg
Power consumption sender :158 mA
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Initialization time:1 s
Maximum range :7 m
EMC:EN 60947-5-2
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Response time :Parallel beam: ≥2.35 ms
Minimum range:Parallel beam: ≥0 mm
Beam separation:50 mm
Minimum detectable object (MDO) :Parallel beam: ≥55 mm
