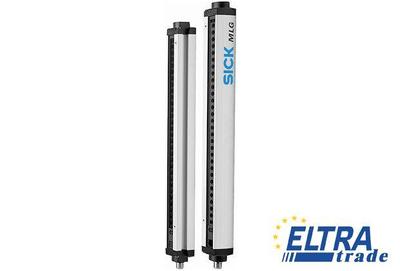

Sick MLG5-2200C811

Measuring automation light grids
Sick MLG5-2200C811
Price on Request
One click request

Specification:

Part Number1062677
Output load capacitive:100 nF
Detection height:2,200 mm
EMC:EN 60947-5-2
Power consumption receiver :235 mA
Switching output:1 x PNP
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Output current Imax.:100 mA
Number of beams:45
Weight:5.56 kg
Response time :Parallel beam: ≥7.75 ms
Initialization time:1 s
Power consumption sender :230 mA
Dimensions (W x H x D):34 mm x 2,314 mm x 29 mm
Front screen:PMMA
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Technology:Sender/receiver
Supply voltage Vs:DC 18 V ... 30 V
Minimum detectable object (MDO):Parallel beam: ≥55 mm
Minimum range:Parallel beam: ≥0 mm
Shock load:10 g / IEC 68-2-29 / 16 ms
Connection type:Male connector M12, 8-pin
Configuration:ESD file
Synchronization:Cable
Wave length:IR 880 nm
Indication:7-segment display, LED
Inputs:1 x PNP
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Beam separation:50 mm
Maximum range :7 m
Working range:5 m
Output load inductive:1 H
Housing material:Aluminum
Power consumption:230 mA
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Protection class:III
