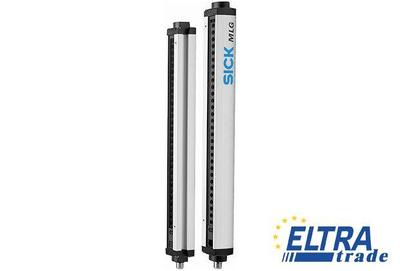

Sick MLG5-2200F811

Measuring automation light grids
Sick MLG5-2200F811
Price on Request
One click request

Specification:

Part Number1040275
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Switching output:3 x PNP
Shock load:10 g / IEC 68-2-29 / 16 ms
Protection class:III
Output load inductive:1 H
Enclosure rating:IP 65
Dimensions (W x H x D):34 mm x 2,314 mm x 29 mm
Power consumption receiver :235 mA
Housing material:Aluminum
Initialization time:1 s
Power consumption sender :230 mA
Minimum detectable object (MDO) :Parallel beam: ≥55 mm
Connection type:Male connector M12, 8-pin
Inputs:1 x PNP
Indication:7-segment display, LED
Ripple:< 5 Vpp
Number of beams:45
Wave length:IR 880 nm
Working range :5 m
Response time :Parallel beam: ≥7.75 ms
Beam separation:50 mm
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Detection height:2,200 mm
Output load capacitive:100 nF
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Minimum range:Parallel beam: ≥0 mm
Task:Measurement light grid
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Synchronization:Cable
Weight:5.56 kg
Output current Imax.:100 mA
Supply voltage Vs :DC 18 V ... 30 V
Maximum range :7 m
Power consumption:230 mA
Front screen:PMMA
Configuration:Standard (switching)
Technology:Sender/receiver
EMC:EN 60947-5-2
