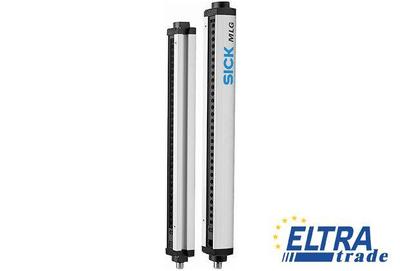

Sick MLG5-2650F543

Measuring automation light grids
Sick MLG5-2650F543
Price on Request
One click request

Specification:

Part Number1069353
Working range:5 m
Minimum range:Multiple scan: ≥840 mm
Dimensions (W x H x D):34 mm x 2,764 mm x 29 mm
Number of beams:54
Output load inductive:1 H
Housing material:Aluminum
Indication:7-segment display, LED
Minimum detectable object (MDO):Multiple scan, 30 mm
Shock load:10 g / IEC 68-2-29 / 16 ms
Connection type:Male connector M12, 5-pin
Power consumption receiver :262 mA
Output load capacitive:100 nF
Front screen:PMMA
Wave length:IR 880 nm
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
EMC:EN 60947-5-2
Beam separation:50 mm
Protection class:III
Technology:Sender/receiver
Maximum range :7 m
Configuration:3-times cross beam
Output current Imax.:100 mA
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Switching output:1 x PNP
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Supply voltage Vs:DC 18 V ... 30 V
Response time :Multiple scan: ≥27.3 ms
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Detection height:2,650 mm
Synchronization:Cable
Weight:6.595 kg
Initialization time:1 s
Power consumption sender :248 mA
