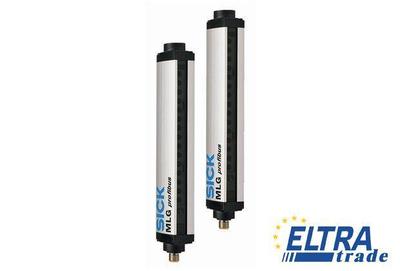

Sick MLG5-2800P811 Measuring automation light grids

Sick MLG5-2800P811
Item Number: MLG5-2800P811
  • Integrated PROFIBUS interface
  • Resolutions of 10 / 20 / 30 / 50 mm and customer-specific resolutions
  • Working range up to 8.5 m
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick MLG5-2800P811 is outdated.

Specification:

Part Number1028844
Shock load:10 g / IEC 68-2-29 / 16 ms
Ripple:< 5 Vpp
Connection type:Male connector M12, 8-pin
Power consumption sender :254 mA
Switching output:1 x PNP
Minimum range:Parallel beam: ≥0 mm
Dimensions (W x H x D):34 mm x 2,914 mm x 29 mm
Protection class:III
Housing material:Aluminum
Enclosure rating:IP 65
Synchronization:Cable
Maximum range :7 m
Weight:6.94 kg
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Minimum detectable object (MDO) :Parallel beam: ≥55 mm
Front screen:PMMA
Wave length:IR 880 nm
Detection height:2,800 mm
Output load capacitive:100 nF
Beam separation:50 mm
Supply voltage Vs :DC 18 V ... 30 V
Response time :Parallel beam: ≥9.55 ms
Indication:7-segment display, LED
Output current Imax.:100 mA
Power consumption receiver :271 mA
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Output load inductive:1 H
EMC:EN 60947-5-2
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Technology:Sender/receiver
Power consumption:254 mA
Working range :5 m
Task:Measurement light grid
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Initialization time:1 s
Number of beams:57
Configuration:GSD data file
Inputs:1 x PNP
