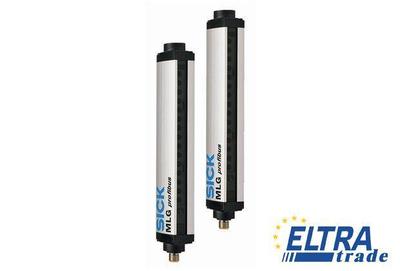

Sick MLG5-3100P821 Measuring automation light grids

Sick MLG5-3100P821
Item Number: MLG5-3100P821
  • Integrated PROFIBUS interface
  • Resolutions of 10 / 20 / 30 / 50 mm and customer-specific resolutions
  • Working range up to 8.5 m
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick MLG5-3100P821 is outdated.

Specification:

Part Number1040556
Power consumption receiver :289 mA
Technology:Sender/receiver
Synchronization:Cable
Supply voltage Vs :DC 18 V ... 30 V
Connection type:Male connector M12, 8-pin
Maximum range :12 m
Output load inductive:1 H
Minimum detectable object (MDO) :Parallel beam: ≥60 mm
Minimum range:Parallel beam: ≥0 mm
Beam separation:50 mm
Weight:7.63 kg
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Switching output:1 x PNP
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
EMC:EN 60947-5-2
Output load capacitive:100 nF
Wave length:IR 880 nm
Detection height:3,100 mm
Number of beams:63
Front screen:PMMA
Shock load:10 g / IEC 68-2-29 / 16 ms
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Task:Measurement light grid
Ripple:< 5 Vpp
Power consumption sender :266 mA
Configuration:GSD data file
Inputs:1 x PNP
Indication:7-segment display, LED
Initialization time:1 s
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Working range :8.5 m
Protection class:III
Dimensions (W x H x D):34 mm x 3,214 mm x 29 mm
Power consumption:266 mA
Output current Imax.:100 mA
Housing material:Aluminum
Response time :Parallel beam: ≥10.45 ms
Enclosure rating:IP 65
