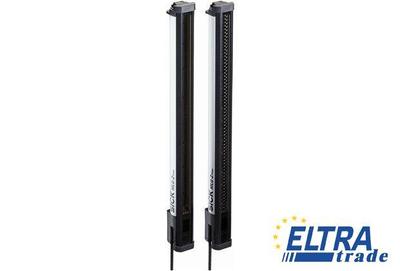

Sick MLG50S-1750D10501 Measuring automation light grids

Sick MLG50S-1750D10501
Item Number: MLG50S-1750D10501
  • High-resolution light grid: Available with beam separation of 5 mm, 10 mm, 25 mm, and 50 mm
  • Available with three push-pull switching outputs or two analog outputs
  • Display configuration with selected, pre-programmed measuring functions
Total price: 1962.53
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1213540
Output current Imax.:100 mA
Power consumption receiver :127.2 mA
Supply voltage Vs :DC 18 V ... 30 V
Power consumption sender :56.8 mA
Weight:3.847 kg
Maximum range :7 m
Minimum detectable object (MDO) :54 mm
Number of beams:36
Software features:Inverted: -, Q1: Auto-define height classification, Auto-define height classification, Auto-define height classification, Standard teach
Minimum range:≥0 mm
Working range:5 m
Enclosure rating:IP 65, IP 67
Beam separation:50 mm
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Wave length:850 nm
EMC:EN 60947-5-2
Data interface:3 x Q (IO-Link)
Connection type:Male connector M12, 5-pin
Protection class:III
Output load capacitive:100 nF
Output load inductive:1 H
Ripple:< 5 Vpp
Dimensions (W x H x D):34 mm x 1,873.3 mm x 30.6 mm
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Detection height:1,750 mm
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Housing material:Aluminum
Initialization time:< 1 s
Response time :6.1 ms
Front screen:PMMA
Ambient light safety:Direct: ≥12,500 lx, Indirect: ≥50,000 lx
