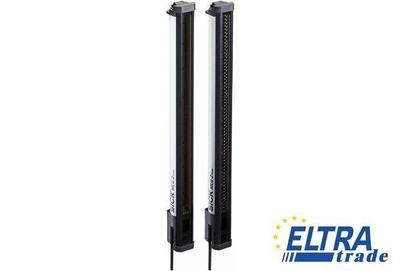

Sick MLG50S-2200A10501

Measuring automation light grids
Sick MLG50S-2200A10501
Price on Request
One click request

Specification:

Part Number1213508
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Power consumption receiver :129 mA
Number of beams:45
Minimum range:≥0 mm
Indication:LED
Output load inductive:1 H
Housing material:Aluminum
Detection height:2,200 mm
Output current Imax.:100 mA
EMC:EN 60947-5-2
Output load capacitive:100 nF
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Option:Nonexistent
Response time :6.7 ms
Enclosure rating:IP 65, IP 67
Software features:Inverted: -, Q1: presence detection, Height measurement (first beam)/FBB, Height measurement (last beam)/LBB, Standard teach
Wave length:850 nm
Connection type:Male connector M12, 5-pin
Supply voltage Vs :DC 18 V ... 30 V
Technology:Sender/receiver
Working range:5 m
Ambient light safety:Direct: ≥12,500 lx, Indirect: ≥50,000 lx
IO-Link:+
Power consumption sender :57.25 mA
Initialization time:< 1 s
Weight:4.747 kg
Version:Prime
Ripple:< 5 Vpp
Maximum range :7 m
Data interface:2 x Analog + 1 x Q (IO-Link)
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Front screen:PMMA
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Minimum detectable object (MDO) :54 mm
Dimensions (W x H x D):34 mm x 2,323.3 mm x 30.6 mm
Beam separation:50 mm
Protection class:III
