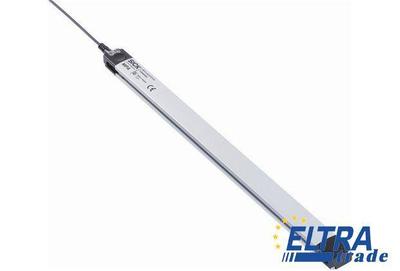

Sick MPA-575THTP0 Magnetic Cylinder Sensors

Sick MPA-575THTP0
Item Number: MPA-575THTP0
  • Analog positioning sensor that can be mounted with adapters on various cylinders thanks to its universal housing, e.g., cylinders with T-slot, round and tie rod cylinders
  • Measuring lengths from 107 mm to 1,007 mm in 36 mm steps
  • Output signals 4 mA to 20 mA as well as 0 V to 10 V in a single sensor
488.88
Quantity
-
+
Total price: 488.88
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1059467
Linearity typ.:0.5 mm
Magnetic field sensitivity, typ.:2 mT
Electrical wiring:DC 4-wire
Load resistance, max.:500 &;937;
IO-Link functions:Standard functions
Housing material:Aluminum
Analog output (current):4 mA ... 20 mA
Cable material:PUR
Connection type:Cable with connector M8, 4-pin, 0.3 m
Housing cap material:PA, strengthened
Housing length:577 mm
Short-circuit protection:+
Sampling rate typ.:1.15 ms
Output function:Analog, IO-Link
Min. load resistance:2 k&;937;
Analog output (voltage):0 V ... 10 V
Repeat accuracy typ:0.06 % FSR (>= 0.1 mm)
Shock/vibration:30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature:-20 °C ... +70 °C
Supply voltage:15 V DC ... 30 V DC
Conductor cross-section:0.14 mm²
Resolution typ.:0.03 % FSR (max. >= 0.06 mm)
Output indicator:+
IO-Link:+
EMC:According to EN 60947-5-2
Reverse polarity protection:+
Cylinder types with adapter:Roundbody cylinder
T-slot
Tie rod cylinder
Enclosure rating:IP 65
IP 67
IP 68
Teach-in:1
Protection class:III
Measuring range:575 mm
