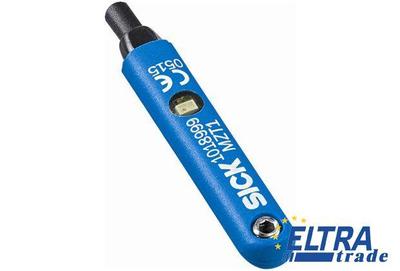

Sick MZT1-03VPS-KQ0 Magnetic Cylinder Sensors

Sick MZT1-03VPS-KQ0
Item Number: MZT1-03VPS-KQ0
  • Compact housing design
  • Complete range with PNP / NPN, PUR and PVC cable , M8 and M12 connector
  • LED function indicator
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick MZT1-03VPS-KQ0 is outdated.

Specification:

Part Number1022188
EMC:According to EN 60947-5-2
Housing material:Plastic
Output function:NO
Output indicator:+
Electrical wiring:DC 3-wire
Reverse polarity protection:+
Voltage drop:≤ 2 V
Magnetic field sensitivity, typ.:≤ 2.8 mT
Power consumption:≤ 10 mA
Ambient operating temperature:-25 °C ... +75 °C
Switching output:PNP
Hysteresis typ.:≤ 0.5 mT
Thread size:M12
Short-circuit protection:+
Housing length:30.5 mm
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Cable material:PUR
Switching frequency typ.:5,000 Hz
Repeatability:≤ 0.1 mT
Conductor cross-section:0.14 mm²
Output current Ia:≤ 100 mA
Connection type:Cable with connector M12, 3-pin, 0.3 m
Cylinder type:T-slot
Cylinder types with adapter:Profile cylinder
Roundbody cylinder
SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Tie rod cylinder
Cylinders with dovetail slots
Enclosure rating:IP 67
Supply voltage:10 V DC ... 30 V DC
Protection class:III
Power-up pulse protection:+
Overrun distance typ.:9 mm
