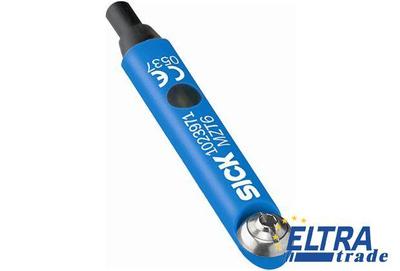

Sick MZT6-03VPS-KWD Magnetic Cylinder Sensors

Item Number: MZT6-03VPS-KWD
  • Compact housing design
  • Combined Allen and flathead installation screw
  • LED function indicator
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick MZT6-03VPS-KWD is outdated.


Part Number1026246
Housing material:Plastic
Cable material:PVC
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Conductor cross-section:0.12 mm²
Housing length:31.5 mm
Reverse polarity protection:+
Enclosure rating:IP 67
Connection type:Cable, 3-wire, 10 m
Switching output:PNP
Power consumption:≤ 10 mA
Supply voltage:10 V DC ... 30 V DC
Voltage drop:≤ 2.2 V
Power-up pulse protection:+
Protection class:III
Output function:NO
Cylinder types with adapter:Profile cylinder
Roundbody cylinder
SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Tie rod cylinder
Cylinders with dovetail slots
Short-circuit protection:+
Hysteresis typ.:> 0.5 mT
Electrical wiring:DC 3-wire
Ambient operating temperature:-30 °C ... +80 °C
Output current Ia:≤ 200 mA
Switching frequency typ.:1,000 Hz
Overrun distance typ.:3 mm
Cylinder type:T-slot
Repeatability:≤ 0.1 mT
EMC:According to EN 60947-5-2
Magnetic field sensitivity, typ.:2.6 mT
