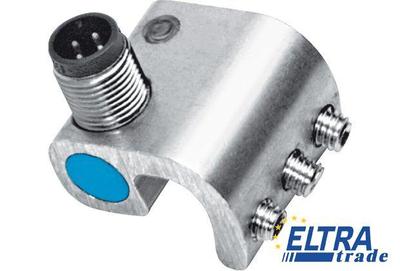

Sick MZZ1-03VPS-AC0 Magnetic Cylinder Sensors

Sick MZZ1-03VPS-AC0
Item Number: MZZ1-03VPS-AC0
  • Mounting on tie-rods with rod diameters of up to 10 mm
  • Cable or plug connection
  • Industrial aluminum housing with integrated mounting claw
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number7900608
Supply voltage:10 V DC ... 30 V DC
Switching frequency typ.:5,000 Hz
Power consumption:≤ 10 mA
Cylinder type:Tie rod cylinder
Housing material:Metal, Aluminum
Enclosure rating:IP 67
Repeatability:≤ 0.1 mm
Sensing face material:Plastic
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Short-circuit protection:+
Magnetic field sensitivity, min.:3 mT
Reverse polarity protection:+
Power-up pulse protection:+
Dimensions (W x H x D):30 mm
Thread size:M12
Sensing face:Front
Electrical wiring:DC 3-wire
EMC:According to EN 60947-5-2
Connection type:Connector M12, 4-pin
Voltage drop:≤ 1.5 V
Output function:NO
Ambient operating temperature:-25 °C ... 75 °C
Switching output:PNP
Time delay before availability:≤ 2 ms
Output current Ia:≤ 300 mA
