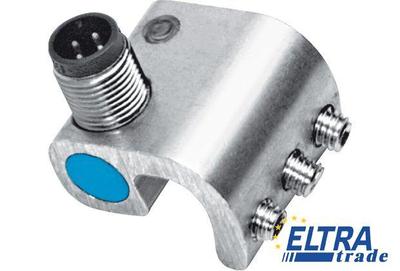

Sick MZZ1-03VPS-AUD Magnetic Cylinder Sensors

Item Number: MZZ1-03VPS-AUD
  • Mounting on tie-rods with rod diameters of up to 10 mm
  • Cable or plug connection
  • Industrial aluminum housing with integrated mounting claw
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1024099
Cylinder type:Tie rod cylinder
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature:-25 °C ... 75 °C
Reverse polarity protection:+
Output function:NO
Special features:Stainless steel screws
Connection type:Cable, 3-wire, 5 m
Switching frequency typ.:5,000 Hz
Power consumption:≤ 10 mA
Dimensions (W x H x D):30 mm
Supply voltage:10 V DC ... 30 V DC
Power-up pulse protection:+
Output current Ia:≤ 300 mA
Enclosure rating:IP 67
Housing material:Metal, Aluminum
Switching output:PNP
Sensing face material:Plastic
Conductor cross-section:0.25 mm²
Cable material:PUR/PVC
EMC:According to EN 60947-5-2
Time delay before availability:≤ 2 ms
Electrical wiring:DC 3-wire
Voltage drop:≤ 1.5 V
Short-circuit protection:+
Sensing face:Front
Repeatability:≤ 0.1 mm
Magnetic field sensitivity, min.:3 mT
