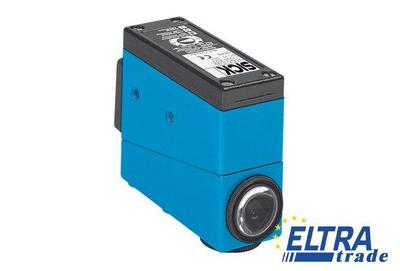

Sick NTL6-B11 Contrast sensors

Sick NTL6-B11
Item Number: NTL6-B11
  • RGB, white LEDs and red lasers
  • Bar graph display visually indicates contrast performance (KT5, KT10)
  • High switching frequency
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1008615
Dimensions (L x W x H):64 mm x 80 mm x 30.4 mm
Light spot size:Dependent on the fiber-optic cable
Analog output QA:0.15 V ... 6 V
Supply voltage Vs:DC 10 V ... 30 V
Switching frequency:10 kHz
Enclosure rating:IP 67
Output current Imax.:200 mA
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Pull-up/Pull-down resistor:22 k OHM
Function:Light/dark switching
Ripple :≤ 5 Vpp
Connection type:2 m cable , 4 x 0.34 mm, shielded, PVC, diameter 6 mm
Ambient temperature:Operation: 0 ... +50 °C, Storage: -25 ... +75 °C
Weight:Approx. 540 g (with cable)
Response time:> 50 µs
Switching output:B: HIGH = Uv - < 2 V / LOW = < 2 V
Adjustment:Manual adjustment, potentiometer
Power consumption :< 80 mA
Sensing distance tolerance:Dependent on the fiber-optic cablethe fiber-optic cable
Sensing distance:Dependent on the fiber-optic cablethe fiber-optic cable
Light source :LED red, infrared
Light emission:Long and short side of housing, exchangeable
Switching mode:PNP
NPN
