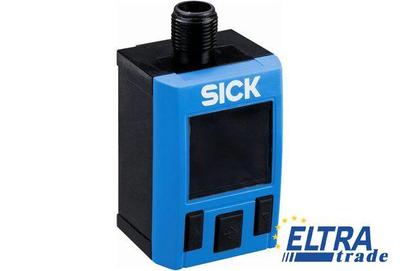

Sick PAC50-AGD

Electronic pressure sensor PAC50
Sick PAC50-AGD
Price on Request
One click request

Specification:

Part Number1062948
Pressure type:Gauge pressure
Relative humidity:≤ 90 %
Non-repeatability:≤ ± 0.2 % of span
Diagnostics output:Switching output 2 can be set as diagnostics output
Output signal:IO-Link/PNP + PNP/NPN/Push-Pull
Power consumption:Max. 40 mA at L+ = 24 VDC
Process connection:2 x G ¼
Gauge pressure:-1 bar ... 0 bar; -1 bar ... +1 bar; 0 bar ... +6 bar; 0 bar ... +10 bar
RoHS certificate:+
Accuracy:≤ ± 1.5 % of span (Including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement according to IEC 61298-2)), ≤ ± 2 % of span incl. temperature error (Including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement according to IEC 61298-2))
Non-linearity:≤ ± 0.5 % (of span (Best Fit Straight Line, BFSL) according to IEC 61298-2)
CE-conformity:EMC directive: 2004/108/EC, EN 61326-2-3
Protection class III:+
Electrical safety:Short-circuit protection: QA, Q1, Q2 towards M and L+, Protection class: III, Overvoltage protection: 32 V DC, Reverse polarity protection: L+ towards M
Ambient temperature:0 °C ... +60 °C
CULus certificate:-
Setting accuracy of switching outputs:≤ ± 0.2 % of span
Shock load:Max. 30 g, xyz according to IEC 60068-2-27 (11 ms, mechanical shock)
Rated temperature range:+10 °C ... +60 °C
Enclosure rating:IP 65 / IP 67 According to IEC 60529
Analog signal output and ohmic load RA:Load resistance for voltage output > 3 kOhm, Load resistance for current output < 600 Ohm, Optional, 4 mA ... 20 mA / 0 V… 10 V. Automatic detection depending on connected load or programmable. Output signals can be inverted: 20 mA … 4 mA / 10 V … 0 V
Initialization time:300 ms
Weight sensor:Ca. 40 g
Zero point adjustment:Max. + 5 % of span
CRUus certificate:+
Measuring range:-1 bar ... 0 bar
Housing material:Seals: NBR, Housing: polycarbonate, DIN rail mounting: POM, Buttons: TPE
Storage temperature:-20 °C ... +80 °C
Vibration load:Max. 5 g (10 ... 150 Hz), xyz, according to DIN EN 60068-2-6
Medium:Dry compressed air
Display:Update: 1,000, 500, 200, 100 ms (adjustable), Pressure display: 4 digits, 16 segments, Pressure unit in display can be switched: bar, MPa, kPa, psi and inHg, LCD with LED backlight (green/red), can be rotated electronically by 180°
Process temperature:0 °C ... +60 °C
