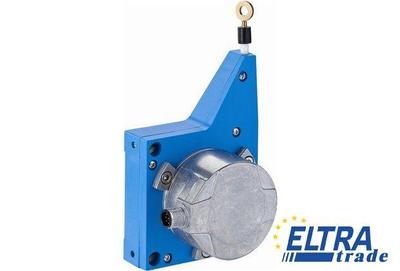

Sick PFG08-A1CM0371 Wire Draw (Rope) Encoders

Sick PFG08-A1CM0371
Item Number: PFG08-A1CM0371
  • Measuring lengths of 1.25 m, 3 m, 5 m, and 10 m
  • Very small dimension (55 ... 190 mm)
  • Modular system: encoder type, measuring length, and interface can be selected
Total price: 520.98
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1060974
Initialization time:≤ 32 ms, with mechanical zero pulse width≤ 30 ms
Length of wire pulled out per revolution:230 mm
Working temperature range (mechanics):-30 °C ... +70 °C
Measuring wire diameter:0.55 mm
Mass (mechanics):250 g
Resolution (wire draw + encoder):0.014 mm
Linearity:≤ ± 2 mm
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Actual length of cable extension:3.2 m
Enclosure rating encoder:IP 67
Power consumption:0.7 W
Wire acceleration:10 m/s²
Spring return force:5 N ... 6.3 N
Part number mechanic:5322778
Reference signal, number:1, electronically, gated with A and B
Hysteresis:≤ 0.4 mm
Connection type:Male connector M12, 8-pin, radial
Life of wire draw mechanism:1 million cycles
Mass (including encoder):550 g
Relative humidity / Condensation:90 % (condensation of the optical scanning not permitted)
Encoder:Incremental encoders
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Mounted mechanic:MRA-G080-103D3
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Housing material, wire draw mechanism:Plastic, Noryl
MTTFd: mean time to dangerous failure:300 a
Reference signal, position:Electronically, gated with A and B
Working temperature range (encoder):-30 °C ... +70 °C
Maximum output frequency:600 kHz
Pulses per revolution:16,384
Electrical interface:4.5 V ... 5.5 V, TTL/RS422
Resistance to shocks:60 g, 6 ms (according to EN 60068-2-27)
Part number encoder:1037566
Enclosure rating mechanic:IP 50
Operating speed:4 m/s
Mounted encoder:DFS60
Mass (measuring wire):1.2 g/m
Supply voltage:4.5 V ... 32 V
Maximum load current:30 mA
Measuring range:0 m ... 3 m
Repeatability:≤ 0.2 mm
