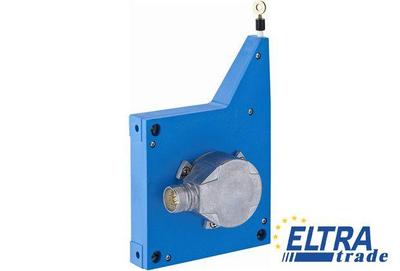

Sick PFG13-A1AM0544 Wire Draw (Rope) Encoders

Sick PFG13-A1AM0544
Item Number: PFG13-A1AM0544
  • Measuring lengths of 1.25 m, 3 m, 5 m, and 10 m
  • Very small dimension (55 ... 190 mm)
  • Modular system: encoder type, measuring length, and interface can be selected
Total price: 618.19
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1061016
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Length of wire pulled out per revolution:385 mm
Spring return force:4.5 N ... 7 N
Operating speed:4 m/s
Relative humidity / Condensation:90 % (condensation of the optical scanning not permitted)
Supply voltage:4.5 V ... 32 V
Mass (mechanics):800 g
Housing material, wire draw mechanism:Plastic, Noryl
Encoder:Incremental encoders
Pulses per revolution:16,384
Measuring wire diameter:0.55 mm
Reference signal, position:Electronically, gated with A and B
Resolution (wire draw + encoder):0.023 mm
Working temperature range (encoder):-30 °C ... +70 °C
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Enclosure rating encoder:IP 67
Connection type:Connector M23, 12-pin, radial
Resistance to shocks:60 g, 6 ms (according to EN 60068-2-27)
Initialization time:≤ 32 ms, with mechanical zero pulse width≤ 30 ms
Part number mechanic:5322779
Reference signal, number:1, electronically, gated with A and B
Life of wire draw mechanism:1 million cycles
Mounted encoder:DFS60
Maximum output frequency:600 kHz
Linearity:≤ ± 2 mm
Actual length of cable extension:5.2 m
Power consumption:0.7 W
Electrical interface:4.5 V ... 5.5 V, TTL/RS422
Working temperature range (mechanics):-30 °C ... +70 °C
Mounted mechanic:MRA-G130-105D3
Wire acceleration:4 m/s²
Maximum load current:30 mA
Enclosure rating mechanic:IP 50
Hysteresis:≤ 0.4 mm
Mass (including encoder):1.1 kg
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Mass (measuring wire):1.2 g/m
Repeatability:≤ 0.2 mm
MTTFd: mean time to dangerous failure:300 a
Measuring range:0 m ... 5 m
Part number encoder:1037565
