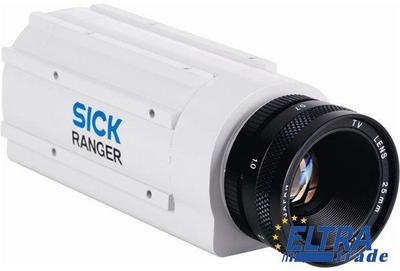

Sick Ranger-C40412 Ranger 3D machine vision

Sick Ranger-C40412
Item Number: Ranger-C40412
  • 3D shape inspection at up to 30,000 profiles / s
  • In-machine 3D calibration tool
  • MultiScan technology to measure 3D, contrast, and scatter at the same time
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick Ranger-C40412 is outdated.

Specification:

Part Number1014218
Connection types:Lemo 14-pin female connector (power, I/O)
Mini D Ribbon, MDR, 26 pin female connector (CameraLink)
IR filter:No IR pass filter
Grayscale measurements:+
Dimensions (L x W x H):109 mm x 50 mm x 50 mm
Digital outputs:1 x TTL
Shock load:15 g, 3 x 6 directions
Encoder interface:5 V TTL
Gray line resolution:512 px
Ambient storage temperature:-20 °C ... +70 °C
Technology:3D
LineScan
MultiScan
Optics:C-Mount, 1/2"
Ambient operating temperature:+5 °C ... +50 °C
Programming interface:iCon API
Power consumption:8 W
3D profile resolution:512 px
Operating system:Windows XP Pro
Maximum performance:30,000 3D profiles/s
Description:Ranger C40 - 3D and MultiScan, up to 30 k profiles / second. CameraLink interface, 512 x 512 pixels.
Task:Inspection, Measuring, Positioning
Scatter resolution:512 px
Digital inputs:5 x TTL
Ripple:< 5 Vpp
Control of external illumination:5 V TTL
Sensor rows available for 3D:0 ... 511
Spectral range:400 nm ... 950 nm
Scatter measurement:+
Communication interfaces:CameraLink
Supply voltage:12 V DC ... 24 V DC
Configuration software:Ranger Studio
Enclosure rating:IP 20
Vibration load:5 g, 58 Hz ... 150 Hz
Maximum 3D height resolution:13 bits 1/16 pixel
Weight:390 g
Housing material:Aluminum
Image sensor:CMOS
Bit depth:8 bit
Pixel size:9.5 µm x 9.5 µm
Example field of view (H x W):Free of choice by lens selection
Pixel matrix fill factor:60 %
Data synchronization:Encoder triggered
External trigger
Free running
Power consumption:1.25 A
Optical center (row, column):(227, 256)
Sensor resolution:512 px x 512 px
Maximum encoder frequency:2 MHz
Factory calibrated:-
Housing color:Gray, varnished
Development environment:C, C++ (VS 2005/2008/2010)
