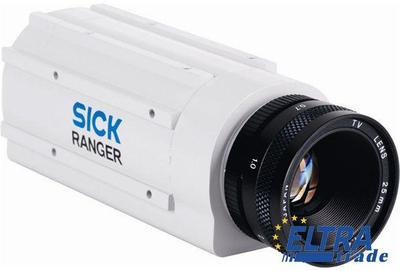

Sick Ranger-C55412 Ranger 3D machine vision

Sick Ranger-C55412
Item Number: Ranger-C55412
  • 3D shape inspection at up to 30,000 profiles / s
  • In-machine 3D calibration tool
  • MultiScan technology to measure 3D, contrast, and scatter at the same time
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick Ranger-C55412 is outdated.

Specification:

Part Number1014217
Configuration software:Ranger Studio
Shock load:15 g, 3 x 6 directions
Development environment:C, C++ (VS 2005/2008/2010)
Description:Ranger C55 - 3D MultiScan, up to 30 k profiles / second. CameraLink interface, 1,536 x 512 pixels, high resolution line of 3,072 pixels.
Dimensions (L x W x H):109 mm x 50 mm x 50 mm
Optical center (row, column):(227, 768)
Connection types:Lemo 14-pin female connector (power, I/O)
Mini D Ribbon, MDR, 26 pin female connector (CameraLink)
Control of external illumination:5 V TTL
Bit depth:8 bit
Example field of view (H x W):Free of choice by lens selection
Grayscale measurements:+
Maximum performance:30,000 3D profiles/s
Factory calibrated:-
Task:Inspection, Measuring, Positioning
Programming interface:iCon API
Digital inputs:5 x TTL
Pixel size:9.5 µm x 9.5 µm
Weight:390 g
3D profile resolution:1,536 px
Pixel matrix fill factor:60 %
Operating system:Windows XP Pro
Data synchronization:Encoder triggered
External trigger
Free running
Gray line resolution:1,536 px
Spectral range:400 nm ... 950 nm
Supply voltage:12 V DC ... 24 V DC
Power consumption:1.25 A
Sensor resolution:1,536 px x 512 px
Sensor rows available for 3D:0 ... 511
Hi-Res Gray resolution:3,072 px
Enclosure rating:IP 20
Scatter resolution:1,536 px
Image sensor:CMOS
Optics:C-Mount, 1"
Communication interfaces:CameraLink
Power consumption:8 W
Technology:3D
LineScan
MultiScan
Digital outputs:1 x TTL
Ambient storage temperature:-20 °C ... +70 °C
Hi-Res pixel fill factor:80 %
Scatter measurement:+
Ambient operating temperature:+5 °C ... +50 °C
Hi-Res pixel size (H x V):4.75 µm x 9.5 µm
Encoder interface:5 V TTL
Ripple:< 5 Vpp
Housing color:Gray, varnished
Housing material:Aluminum
Maximum 3D height resolution:13 bits 1/16 pixel
Vibration load:5 g, 58 Hz ... 150 Hz
Maximum encoder frequency:2 MHz
IR filter:No IR pass filter
