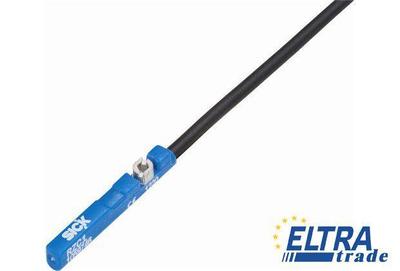

Sick RZC1-04ZRS-KQ0 Magnetic Cylinder Sensors

Sick RZC1-04ZRS-KQ0
Item Number: RZC1-04ZRS-KQ0
  • Fits into all commonly used cylinders, linear slides and grippers with C-slots, such as, Festo or SMC
  • Complete range with Reed 3-wire, Reed 2-wire, and Reed 120V version
  • Combined Allen and flathead installation screw
24.44
Quantity
-
+
Total price: 24.44
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1059745
Thread size:M12
Power consumption:5 mA
Repeatability:≤ 0.1 mT
Switching power:10 W
Output function:NO
Switching frequency typ.:± 500 Hz
Housing length:26.3 mm
Electrical wiring:AC/DC 3-wire
Cylinder types with adapter:SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Output current Ia:≤ 500 mA
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Housing material:Plastic
Cable material:PUR
Conductor cross-section:0.09 mm²
Connection type:Cable with connector M12, 3-pin, 0.3 m
Housing cap material:PA, strengthened
Protection class:III
Overrun distance typ.:7 mm
Voltage drop:< 0.5 V
Supply voltage:5 V AC/DC ... 30 V AC/DC
Cylinder type:C-slot
Switching output:Reed
EMC:According to EN 60947-5-2
Ambient operating temperature:-30 °C ... 80 °C
Enclosure rating:IP 68
