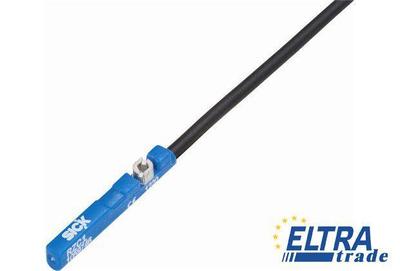

Sick RZC1-04ZRS-KR0 Magnetic Cylinder Sensors

Sick RZC1-04ZRS-KR0
Item Number: RZC1-04ZRS-KR0
  • Fits into all commonly used cylinders, linear slides and grippers with C-slots, such as, Festo or SMC
  • Complete range with Reed 3-wire, Reed 2-wire, and Reed 120V version
  • Combined Allen and flathead installation screw
Total price: 23.31
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1059748
Housing cap material:PA, strengthened
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Connection type:Cable with connector M8, 3-pin, with knurled nuts, 0.3 m
Cable material:PUR
Housing material:Plastic
Cylinder types with adapter:SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Output current Ia:≤ 500 mA
Overrun distance typ.:7 mm
Housing length:26.3 mm
Switching output:Reed
Repeatability:≤ 0.1 mT
Cylinder type:C-slot
Switching frequency typ.:± 500 Hz
Conductor cross-section:0.09 mm²
Output function:NO
Voltage drop:< 0.5 V
Enclosure rating:IP 68

Ambient operating temperature:-30 °C ... 80 °C
Thread size:M8
Switching power:10 W
Electrical wiring:AC/DC 3-wire
EMC:According to EN 60947-5-2
Power consumption:5 mA
Protection class:III
Supply voltage:5 V AC/DC ... 30 V AC/DC
