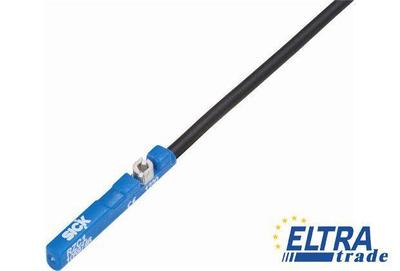

Sick RZC1-04ZRS-KUB Magnetic Cylinder Sensors

Item Number: RZC1-04ZRS-KUB
  • Fits into all commonly used cylinders, linear slides and grippers with C-slots, such as, Festo or SMC
  • Complete range with Reed 3-wire, Reed 2-wire, and Reed 120V version
  • Combined Allen and flathead installation screw
Total price: 22.56
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1059749
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Repeatability:≤ 0.1 mT
EMC:According to EN 60947-5-2
Supply voltage:5 V AC/DC ... 30 V AC/DC
Voltage drop:< 0.5 V
Housing material:Plastic
Connection type:Cable, 3-wire, 5 m
Protection class:III
Housing length:26.3 mm
Overrun distance typ.:7 mm
Electrical wiring:AC/DC 3-wire
Cable material:PUR
Switching frequency typ.:± 500 Hz
Housing cap material:PA, strengthened
Ambient operating temperature:-30 °C ... 80 °C
Cylinder type:C-slot
Conductor cross-section:0.09 mm²
Output current Ia:≤ 500 mA
Enclosure rating:IP 68
IP 69K
Switching output:Reed
Switching power:10 W
Power consumption:5 mA
Output function:NO
Cylinder types with adapter:SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
