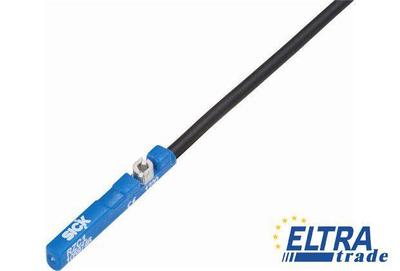

Sick RZC1-04ZUS-KP0 Magnetic Cylinder Sensors

Sick RZC1-04ZUS-KP0
Item Number: RZC1-04ZUS-KP0
  • Fits into all commonly used cylinders, linear slides and grippers with C-slots, such as, Festo or SMC
  • Complete range with Reed 3-wire, Reed 2-wire, and Reed 120V version
  • Combined Allen and flathead installation screw
Total price: 21.43
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1059751
Ambient operating temperature:-30 °C ... 80 °C
Conductor cross-section:0.09 mm²
Connection type:Cable with connector M8, 2-pin, 0.3 m
Output function:NO
Repeatability:≤ 0.1 mT
Cylinder type:C-slot
Cable material:PUR
EMC:According to EN 60947-5-2
Electrical wiring:AC/DC 2-wire
Cylinder types with adapter:SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Switching frequency typ.:500 Hz
Output current Ia:≤ 50 mA
Housing cap material:PA, strengthened
Protection class:III
Thread size:M8
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Housing length:26.3 mm
Switching power:10 W
Overrun distance typ.:7 mm
Voltage drop:< 3.2 V
Switching output:Reed
Enclosure rating:IP 67

Power consumption:5 mA
Housing material:Plastic
Supply voltage:5 V AC/DC ... 30 V AC/DC
